Continuing on the same note as the Greenwald-Khanna post, we discuss another novel data structure for order statistics called Q-Digest. Compared to GK, Q-Digest is much simpler, easier to implement and extends to a distributed solution very easily. The data structure was designed with sensor networks in mind, where minimizing radio transmission overhead is of paramount importance. It originally appeared in this paper by Shrivastava et al

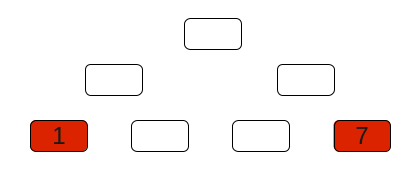

Q-Digest is simply a complete binary tree over the range of values, where the leaf nodes are the values themselves. In the example below, we have a digest over the values 1 to 4 inclusive, and we have seen the value 1 once and the value 4 seven times.
![A Q-Digest over the values [1..4]](/images/posts/q-digest/qdigest_hu_24dcf2620eaf7fe6.png)

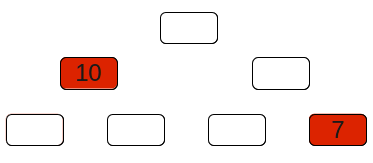

The novelty is the compression algorithm which allows values with low frequencies to propagate up the tree and be combined. In the example below, we have some information loss. We know that there are 10 values between 1 and 2 inclusive, but we don’t know the exact counts of each

When building the q-digest, there is one invariant to keep in mind. The total count of a node, its sibling and its parent must be more than n/k, where n is the total sum of all counts and k is a compression factor of our choosing. The root node is an exception. In the paper, this is referred to as property 2. Property 1 states that the count of a node must be less than n/k unless it is a leaf node. Property 1 is used in the original paper to prove some guarantees about the q-digest.
The data structure provides some nice guarantees that make it very practical:
- Given a compression factor k, the size of the digest is never more than 3k
- When merging two q-digests, as would be common in a distributed setting, all one has to do is take the union of the two and run the compress algorithm. This is much simpler than the distributed extensions to the GK algorithm.
- When answering quantile queries, the error is bounded by log(σ)/ k, where σ is the max range of values stored in the digest. Thus our answer to a median query will always be between 0.5n and (0.5 + log(σ)/k)*n.
- We can maintain the same relative errors when merging digests
- As we’ll see in future posts, we can augment the data structure to create a lot of fun possibilities
I’m providing the source code in python. Since I’m new to python, any non-performance related comments on the code itself are much appreciated.
from collections import namedtuple
from math import floor, pow, log, ceil
import random
### Two properties
### 1) node.count <= floor(n/k) where n = sum(f_i all i), meaning the sum of all frequencies and k is a compression factor
### 2) node.count + node.parent.count + node.sibling.count > floor(n/k)
### root and leaf nodes are exceptions
### Property #1 means that no node should have a high count
### Property #2 means that two children (siblings) that have low count should be merged with their parent
class QDigest():
"""
Implements a tree without wasting space by assuming that children can be found at index 2i, 2i+1 and parent
is at floor(i / 2)
"""
class Node():
def __init__(self, id, is_leaf=False, initial_count=1):
self.id = id
self.count = initial_count
self.is_leaf = is_leaf
def inc(self, amount=1):
self.count+=amount
def __cmp__(self, other):
return cmp(self.id, other.id)
def __repr__(self):
return "{id=%d, cnt=%d}" % (self.id, self.count)
@property
def is_root(self):
return self.id is 1
def parent_id(self):
""" Returns the id of the parent or None if this is the root node
"""
if self.is_root:
return None
return int(floor(self.id / 2.0))
def children(self):
""" Returns the ids of the left child and the right child respectively
"""
return (2*self.id, 2*self.id + 1)
def sibling_id(self):
""" Returns the id of the sibling or None if this is the root node
"""
if self.is_root:
return None
if self.id % 2 == 0:
return self.id + 1
else:
return self.id - 1
empty_node = Node(id=-1, initial_count=0)
def __init__(self, universe_size, compression_factor):
""" Defines a q-digest of specified size. Size here defines the universe, not the sum of frequencies.
It is assumed that the first value is 1
"""
self.size = universe_size
self.digest = []
self.id = 1
self.k = compression_factor
def __add__(self, other):
"""
Operator overloading for merging two q-digests together. The two digests must have the same compression
factor
"""
if self.k is not other.k:
raise ValueError("Compression factors of two digests not the same")
digest = QDigest(max(self.size, other.size), self.k)
digest.digest = self.digest[:]
for node in other.digest:
digest._insert_or_modify_node(node.id, node.count)
digest.compress()
return digest
@property
def n(self):
""" Sum of all frequencies stored in this q-digest
"""
return sum(x.count for x in self.digest)
@property
def height(self):
"""
The height of the tree, used when assuming that all leaf nodes have a range [value, value]
"""
return int(ceil(log(self.size, 2)))
def _get_node(self, node_id):
"""
Returns the node object having the specified id. If that id does not exist
return a special node with id=-1 and count=0
"""
try:
node = (x for x in self.digest if x.id == node_id).next()
return node
except StopIteration:
return QDigest.empty_node
def _remove_node(self, node_id):
"""
Removed the node with the specified id from the digest
"""
node = self._get_node(node_id)
if node is not QDigest.empty_node:
self.digest.remove(node)
def violates_prop_1(self, node):
"""
Checks if a node violates property 1, namely node.count <= floor(n/k)
This property is not used in the code, but it is used in the paper to prove error guarantees
"""
if node.is_root or node.is_leaf:
return False
else:
return node.count <= int(floor(self.n/self.k))
def violates_prop_2(self, node):
""" Checks if a node violates node.count + node.sibling.count + node.parent.count > floor(n/k)
We assume that the node passed in is one of the two children nodes
"""
sibling_count = self._get_node(node.sibling_id()).count
parent_count = self._get_node(node.parent_id()).count
return node.count + sibling_count + parent_count <= int(floor(self.n/self.k))
def _insert_or_modify_node(self, node_id, inc_by=1):
"""
Helper function to do the actual insertion
"""
current = self._get_node(node_id)
if current is not QDigest.empty_node:
current.inc(inc_by)
else:
current = QDigest.Node(id=node_id, initial_count=inc_by)
self.digest.append(current)
def insert(self, value):
"""
Insert a new element into the q-digest or increase the count if we have already seen that
value before
"""
if value > self.size:
raise ValueError()
id_for_leaf_node = int(pow(2, self.height) + value - 1)
self._insert_or_modify_node(node_id=id_for_leaf_node, inc_by=1)
def compress(self):
"""
Starting from the bottom, go over each node and at each step check if prop2 is violated
"""
for l in xrange(self.height, 0,-1): # start from bottom
level_l_nodes = sorted((x for x in self.digest if x.id >= pow(2,l) and x.id < pow(2,l+1)), key=id)
for node in level_l_nodes:
if self.violates_prop_2(node):
merged_count = node.count + self._get_node(node.sibling_id()).count
self._insert_or_modify_node(node_id=node.parent_id(), inc_by=merged_count)
self._remove_node(node.id)
self._remove_node(node.sibling_id())
def quantile_query(self, fractions):
"""
Given a list of fractions between (0, 1) find the value in the digest closer to that quantile. For example
set fraction to 0.5 and 0.75 to get the median and 75th percentile. The algorithm as describes in the paper
goes as follows: Traverse the tree in postorder fashion, adding the counts. Once the running sum exceeds
q*n, where q our fraction, return the previous value.
"""
# setup arrays for results
running_sums = {}
results = {}
for fraction in fractions:
if fraction <= 0.0 or fraction >= 1.0:
raise ValueError("Fraction should be between 0 and 1 exclusive")
else:
running_sums[str(fraction)] = 0
results[str(fraction)] = None
def _get_node_for_traversal(node_id):
"""
helper fcn that will create a pseudo-node if one does not exist, just so we can
easily fake post-order traversal the traditional way
"""
current = self._get_node(node_id)
if current.id is -1:
current = QDigest.Node(id=node_id, initial_count=0)
return current
def basic_dfs(node):
"""
generator fcn that does a postorder traversal of the tree, summing up the counts for each
node and stores the result when it exceeds q*n for each desired fraction passed in the outer fcn
"""
if node and node.id < self.size * 2 :
left_node, right_node = (_get_node_for_traversal(x) for x in node.children())
for node in basic_dfs(left_node):
yield node
for node in basic_dfs(right_node):
yield node
for fraction in fractions:
if not results[str(fraction)] and node.count + running_sums[str(fraction)] < fraction*self.n:
running_sums[str(fraction)] = running_sums[str(fraction)] + node.count
else:
results[str(fraction)] = running_sums[str(fraction)]
#TODO: stop programming with side-effects, shitty habit
[x for x in basic_dfs(_get_node_for_traversal(1))]
return results
if __name__ == '__main__':
# the example from the paper
digest = QDigest(8,5)
digest.insert(1)
digest.insert(3)
digest.insert(3)
digest.insert(3)
digest.insert(3)
digest.insert(4)
digest.insert(4)
digest.insert(4)
digest.insert(4)
digest.insert(4)
digest.insert(4)
digest.insert(5)
digest.insert(6)
digest.insert(7)
digest.insert(8)
digest.compress()
print digest.digest
print digest.quantile_query((0.25, 0.5, 0.75))
